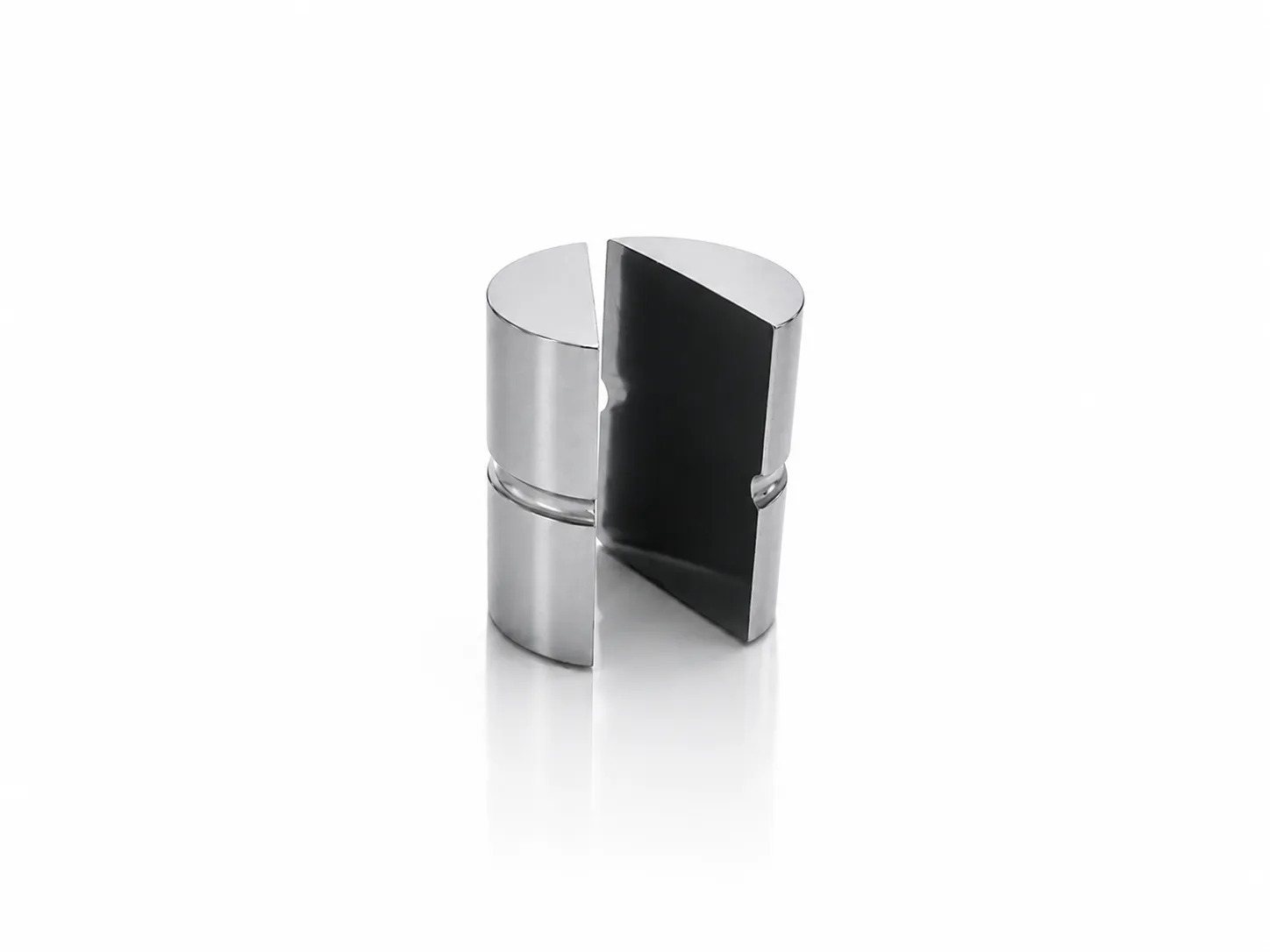

Cutting segment for rectangular-section dies
Replaceable cutting segment for rectangular-section clinching dies; it can be replaced without changing the entire die.
Description
A replaceable cutting segment designed for rectangular-section dies used in clinching. The replaceable design allows the segment to be changed without replacing the entire die.
The segment fits rectangular-section dies. The die/punch pair and the sheet thickness range are selected to match the material being joined.
