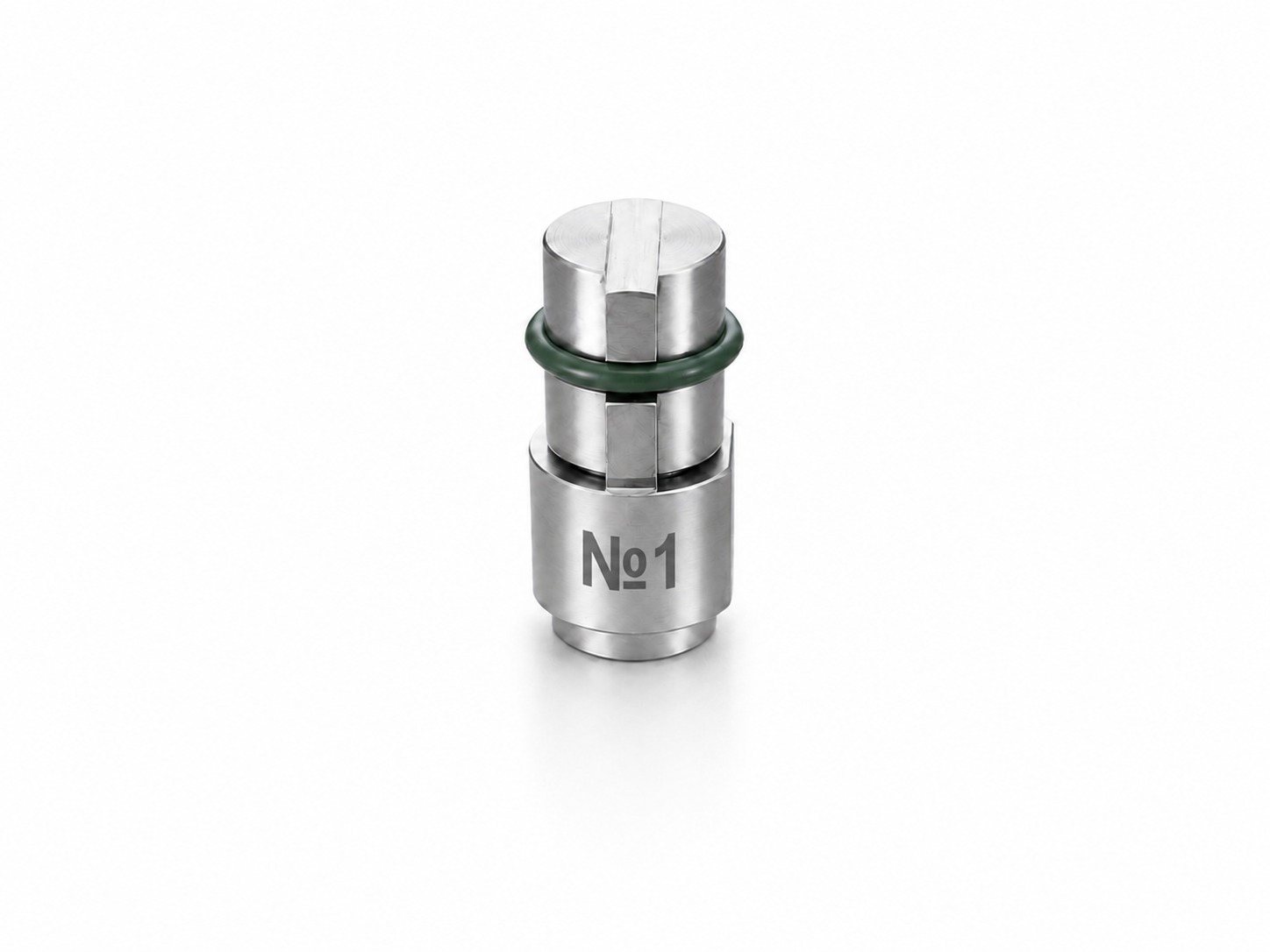

Die No. 1, rectangular section (0.8–1.5 mm)
Rectangular-section Die No. 1 for clinched joints — working range of total sheet thickness 0.8–1.5 mm.
Description
Die No. 1 is a rectangular-section die that forms part of the forming tooling for sheet-metal clinching. Its working range of total joined sheet thickness is 0.8–1.5 mm.
The die is designed for the manual clinching tool and the stationary pneumatic press. The die and punch pair and the thickness range are selected to match the material being joined.
