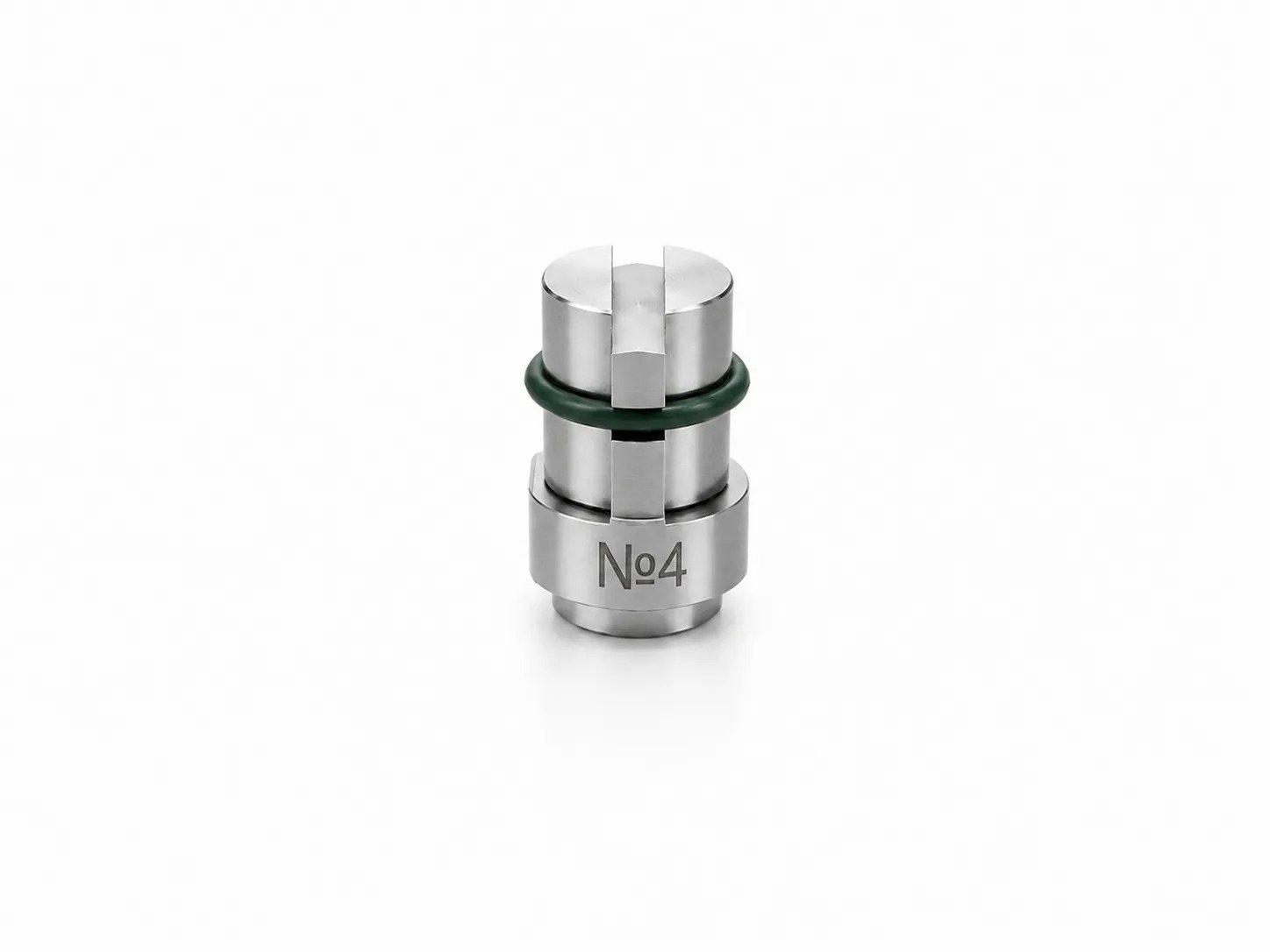

Die No. 4, rectangular section (2.6–3.0 mm)
Rectangular-section die No. 4 for clinching sheets with a total thickness of 2.6–3.0 mm; designed for the manual clinching tool.
Description
Die No. 4, rectangular section, is part of the clinching tooling set, designed for joining sheets with a total thickness of 2.6–3.0 mm.
The die is compatible with the manual clinching tool. The die–punch pair and the thickness range are selected to match the material being joined.
EU economic operator (Art. 4 Regulation (EU) 2019/1020): Jambi Khassan Baumaschinenhandel, Kruppstrasse 8H, 76344 Eggenstein-Leopoldshafen, Germany
