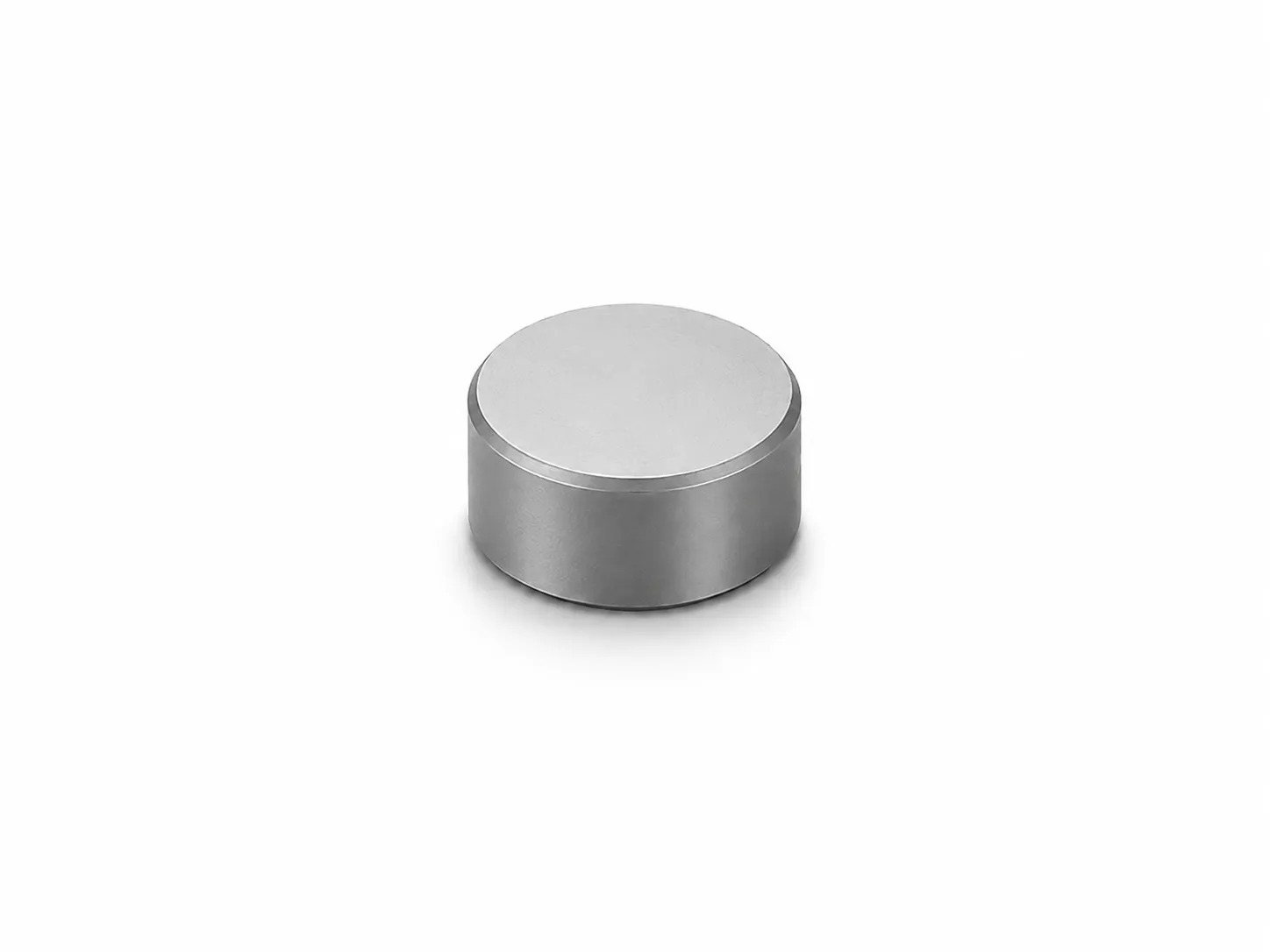

Adjustment shim for dies No. 4–6
Adjustment shim for dies No. 4–6 of the manual clinching tool; used for precise adjustment of the die position.
Description
An adjustment shim designed for dies No. 4–6 used in clinching. It provides precise adjustment of the die position in the tool.
The shim is used with the dies of the manual clinching tool. The die/punch pair and the sheet thickness range are selected to match the material being joined.
