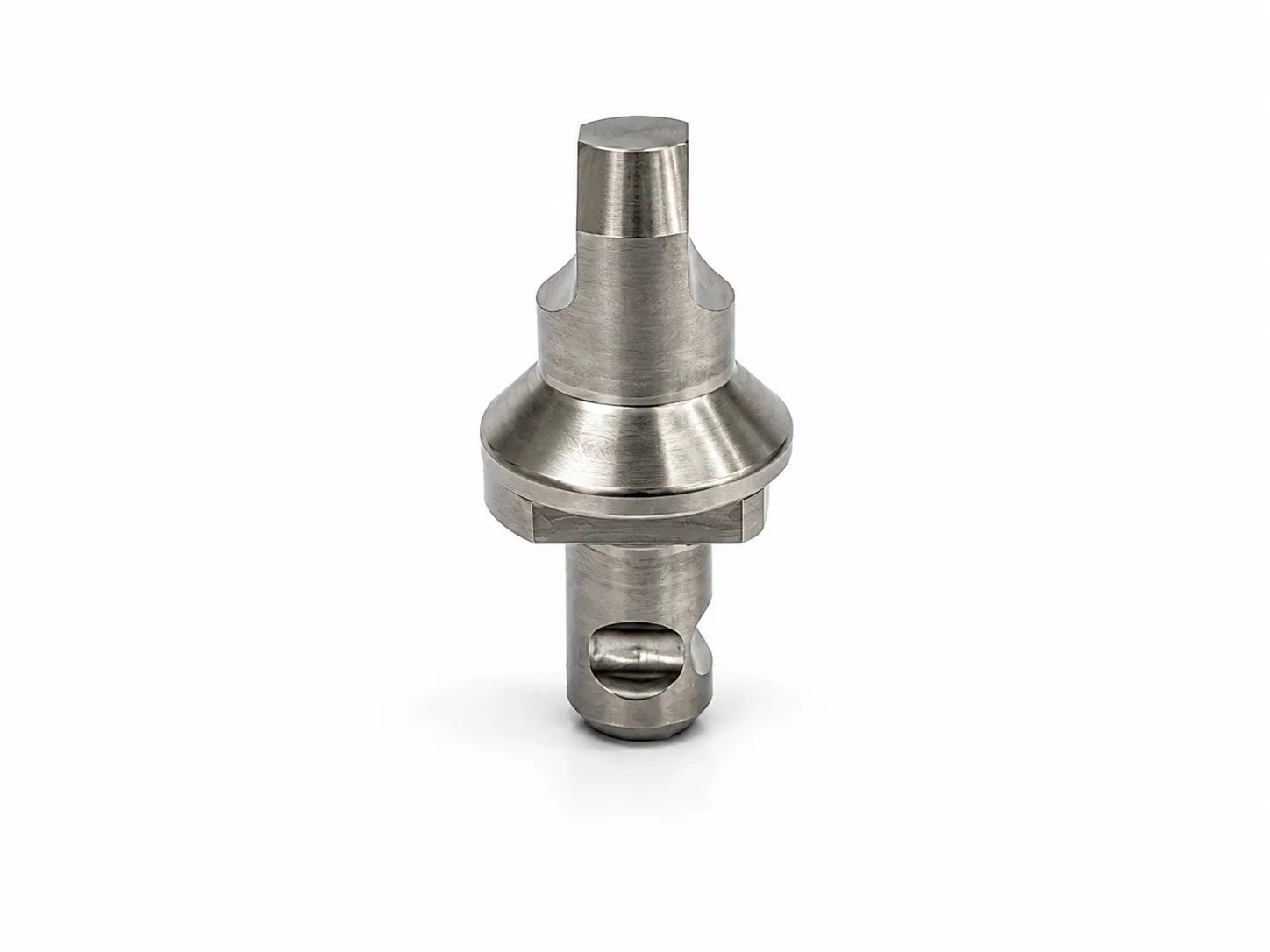

Rectangular-section punch with enlarged contact area
Rectangular-section punch with an enlarged surface contact area compared to the standard punch, designed for the manual clinching tool.
Description
The rectangular-section punch with enlarged contact area is forming tooling for sheet-metal clinching. Compared with the standard punch, it has an enlarged area of contact with the surface of the joined material.
The punch is designed for use with the manual clinching tool. The punch and die pair and the total sheet-thickness range are selected to suit the material being joined.
