Dies and punches

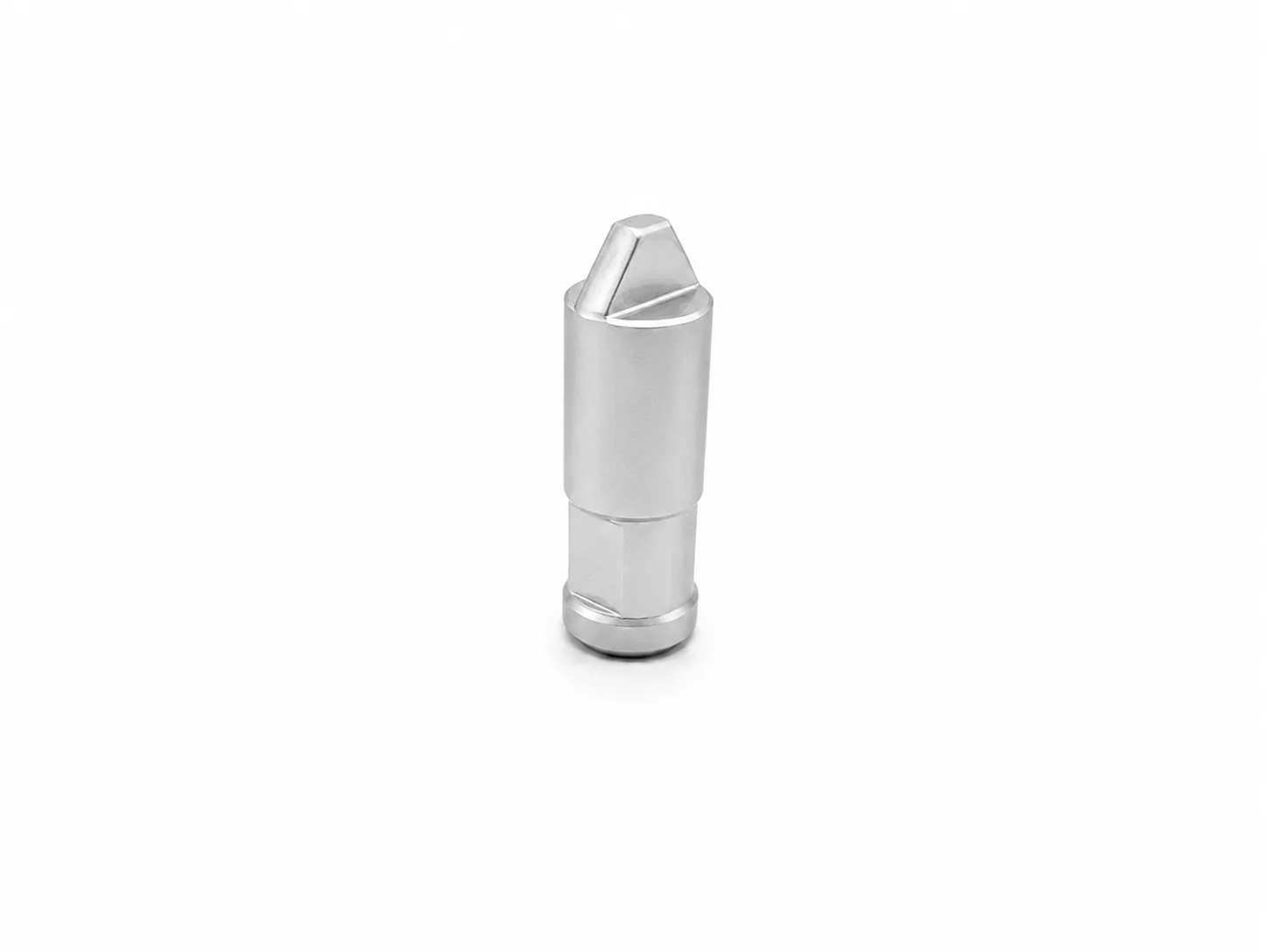

Rectangular-section punch
Rectangular-section punch for the manual clinching tool and the stationary pneumatic press, working in a pair with rectangular-section dies.
Description
The rectangular-section punch is a working element for sheet-metal clinching that works in a pair with rectangular-section dies.
The punch is designed for the manual clinching tool and the stationary pneumatic press; the punch–die pair and the total sheet thickness range are selected to match the material being joined.
