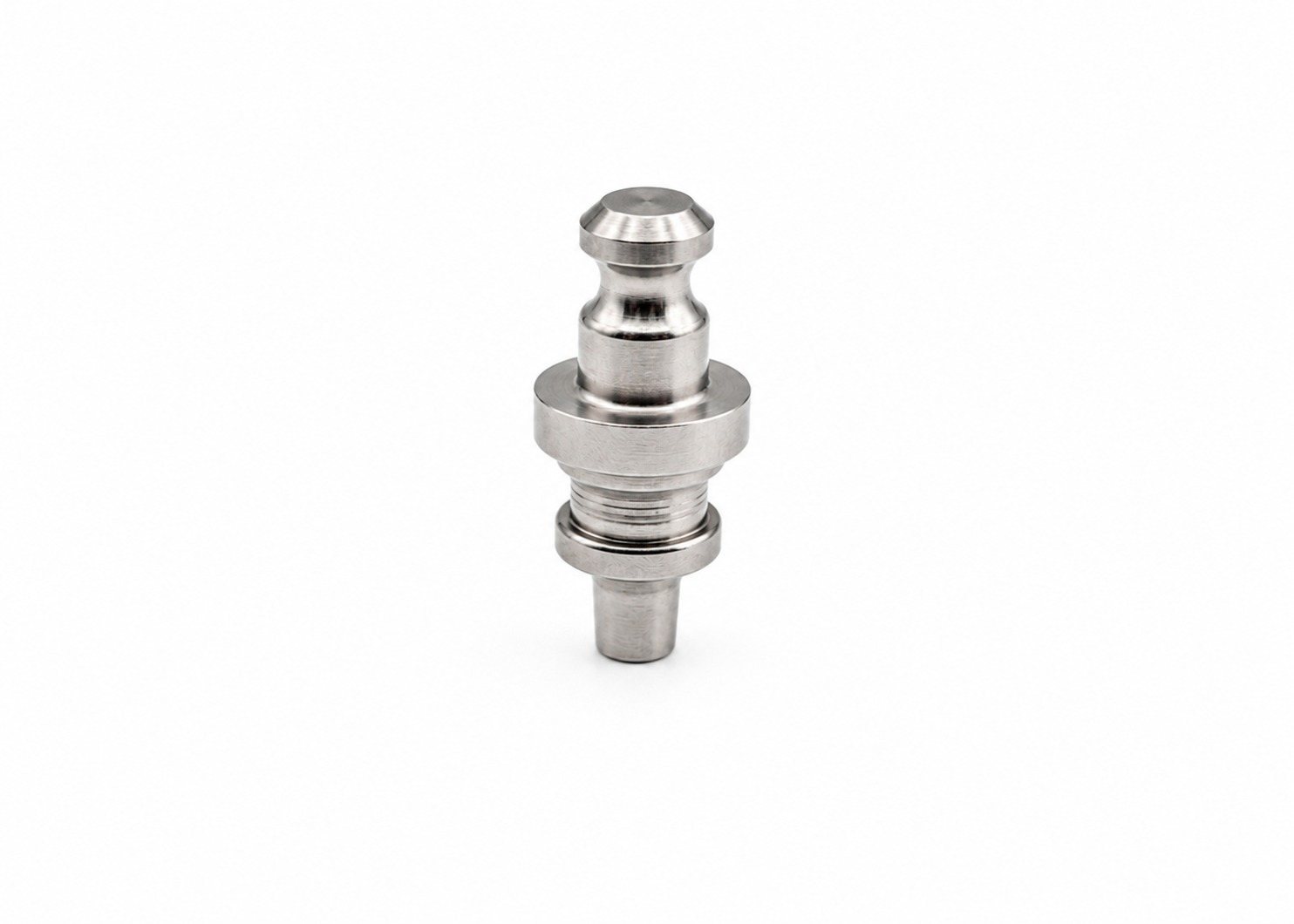

Round-section punch with shortened shank
Round-section punch with shortened shank for the manual clinching tool and the stationary pneumatic press; works paired with a round die.
Description
The round-section punch with shortened shank is forming tooling for sheet-metal clinching. It works paired with a round die.
The punch is designed for use with the manual clinching tool and the stationary pneumatic press. The punch and die pair and the total sheet-thickness range are selected to suit the material being joined.
